Siemens G120 & V20 Vfd

Siemens G120 & V20 Vfd

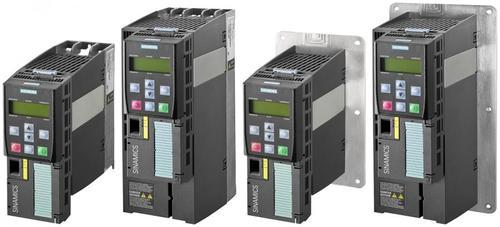

Siemens G120 Drive

SINAMICS G120 Drive can be use for Higher range Applications such as HVAC,PUMPS,EXTRUDERS,CONVEYOR,MIXERS,COMPRESSORS ETC.

SINAMICS G120 is a Modular inverter system that essentially comprises of two function units. 1)Control Unit. 2)Power Module. Controlling of the motor according to the various control procedures is executed via the control unit. In Sinamics G120 several control units are available in various designs,majorly categorized into. 1)Control Units CU230P-2-For Pumps,Fans and Compressors. 2)Control Units CU240B-2-For basic applications with Variable-speed Drives. 3)Control Units CU240E-2-For standard applications in general machinery. 4)Control Units CU250s-2-For performance applications in general machinery.

SINAMICS G120 Power Modules is available in type such as. 1)PM230 IP55 2)PM230 IP20 3)PM240 4)PM240-2 5)PM250. G120 Power Module is available in wide range of Power from 0.37KW to 90KW with integrated filter and without integrated filter. Basic Operator Panel(BOP) is the display Unit of G120. It is Placed over Control Unit through which we can do Parametrization of Drives.

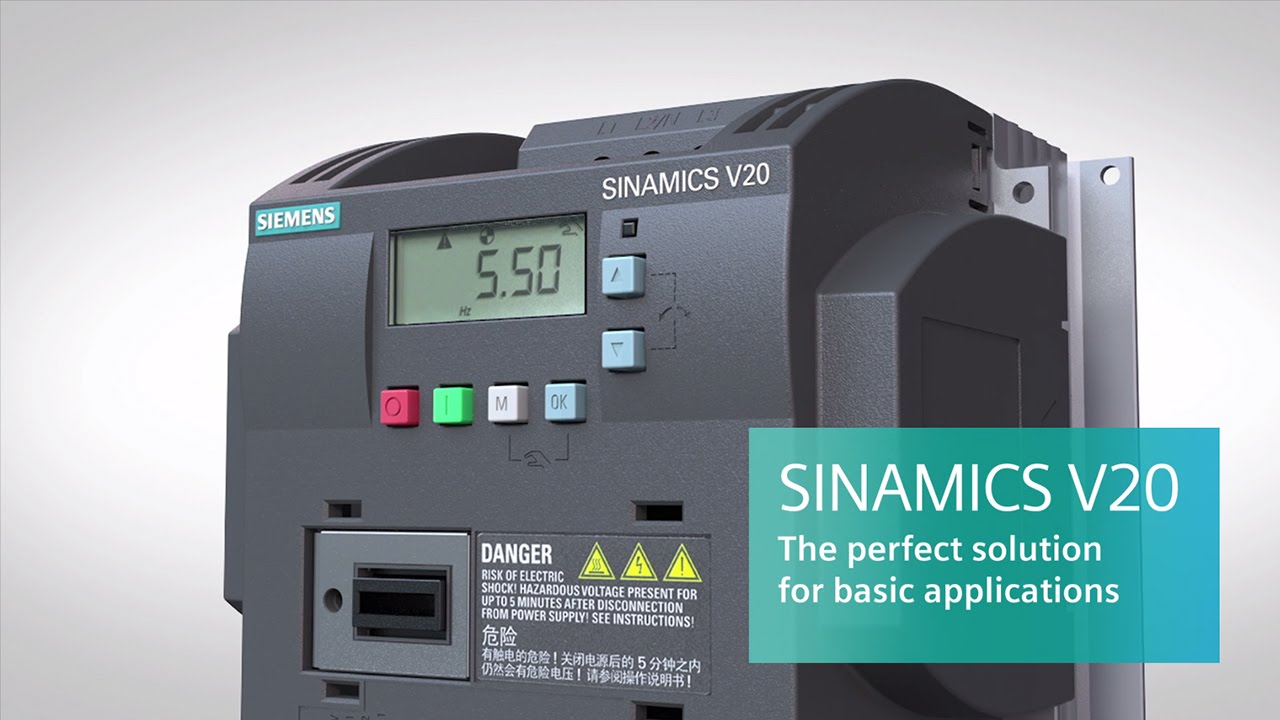

Siemens V20 Drive

Sinamics V20 is a basic High Performance AC drive. It is very cost effective and Energy efficient. It can be used for different applications like pumps, fans, compressors and conveyor systems and is also used for simple drive tasks in industries. It is available in different frame sizes like FSA,FSB,FSC,FSD & FSE. In 3 phase AC it is available in range of 0.37KW to 30KW. In 1 phase AC it is available in range of 0.12KW to 3KW. Sinamics V20 is available in 2 types with integrated line filter and without integrated line filter.
